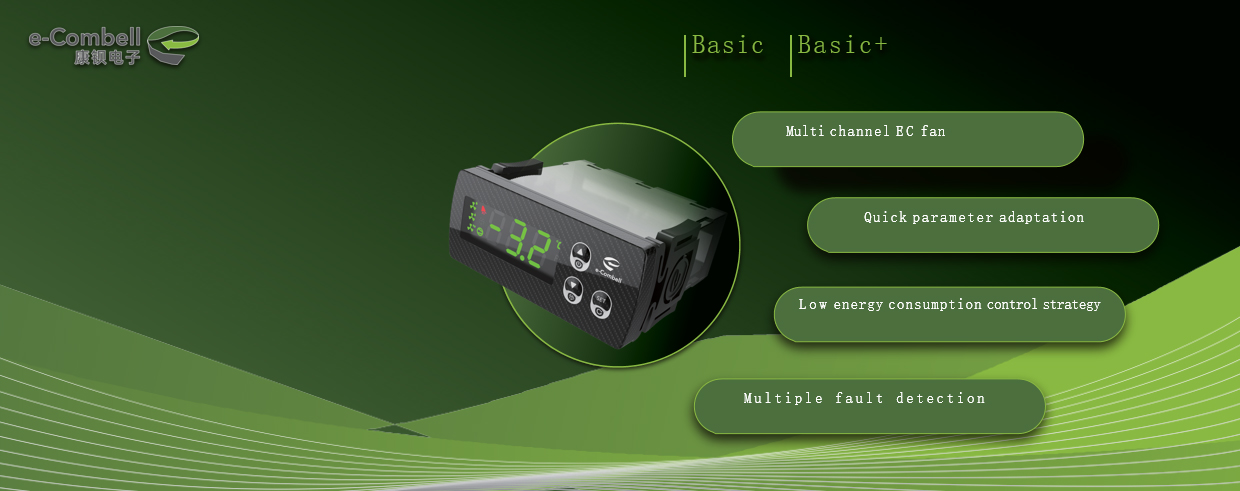

ZW-S1LLD1 Basic Temperature Controller–ZouWu Series

ZW-S1LLD1 Basic Temperature Controller–ZouWu Series

Product details Downlaod

Housing material:

PC ABS

Dimensions:

Front 32x74 mm; depth 60mm;

Installation size:

Fixed on a panel with a hole of 71x29 mm;

Overall protection level:

IP20;

Front panel protection level:

IP65;

Terminals:

1*7P spacing 3.96mm

2*7P spacing 2.5mm

Power supply:

According to the Model, there are: 90-240Vac ±10%, 50/60Hz. Please refer to the real brand;

power consumption:

Maximum 3VA;

Display:

3-digit white digital tube, 43mm×16mm×6mm

Input:

Up to 2 channels NTC inputs

Digital input:

Passive switch quantity

PWM input *3

Digital output:

PWM output *3

Output relay:

Compressor: SPST 16(6)A 250Vac

Melting frost:

SPDT 8(3) A, 250Vac

Evaporator fan:

Supports up to 2 PWM controls

Data storage:

Electrically erasable electrically writable memory (EEPROM).1KB

Maximum insulation voltage:

2500V

Maximum input current:

5A

Operating temperature:

-30℃~55℃

Storage temperature:

-40℃~80℃

Relative humidity:

5~90RH% (no condensation)

Measure and control the temperature range:

NTC -40~110°C;

Resolution:

0.1 °C or 1 °C;

Accuracy (at ambient temperature 25°C):

±0.7 °C ±1 bit
