Y WF710
Working method: S1
Insulation level: Class B, Class F
Protection level: IP44, IP54
Ambient temperature: -30℃~60℃

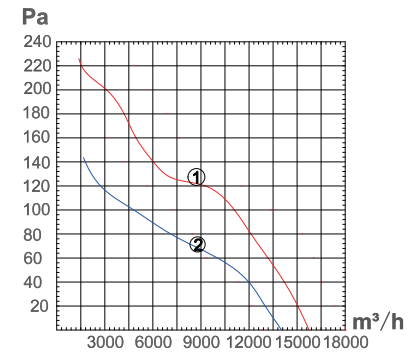

| Model | Voltage V | Frequency Hz | Rated current A | Input power W | Speed r/min | Capacitor чF | Net weight kg | Noise db(A) | Air volume m³/h | Curve |
| YWF6D-710 | 380 | 50 | 2 | 1100 | 910 | / | 25 | 76 | 15380 | ① |
| 380 | 60 | 1.4 | 750 | 750 | / | 25 | 73 | 13560 | ② |
