EC92-450
Working method: S1
Insulation level: Class F
Protection level: IP54
Ambient temperature: -40℃~60℃

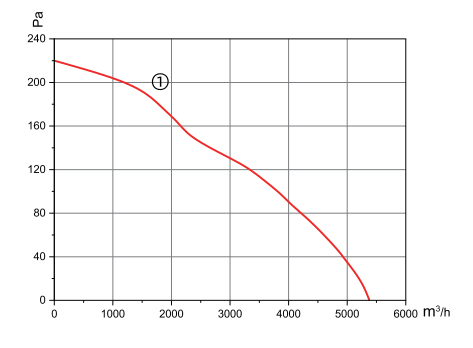

| Model | Voltage V | Frequency Hz | Rated current A | Input power W | Speed r/min | Noise db(A) | Air volume m³/h | Curve |
| EC92-450A*E | 230 | 50/60 | 1.16 | 175 | 1450 | 67 | 5380 | ① |
| EC92-450C*E | ||||||||
| EC92-450D*E | ||||||||
| EC92-450**H | 3～380 | 50/60 | 0.37 |
