EC92-500
Working method: S1
Insulation level: Class F
Protection level: IP55
Ambient temperature: -40℃~60℃

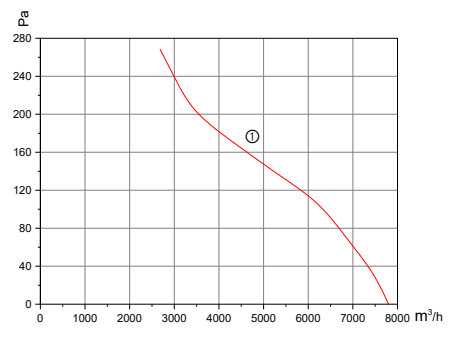

| Model | Voltage V | Frequency Hz | Rated current A | Input power W | Speed r/min | Noise db(A) | Air volume m³/h | Curve |
| EC92-500A*E | 230 | 50/60 | 1.90 | 290 | 1500 | 72 | 7800 | ① |
| EC92-500B*E | ||||||||
| EC92-500**E | 3～380 | 50/60 | 0.64 |
