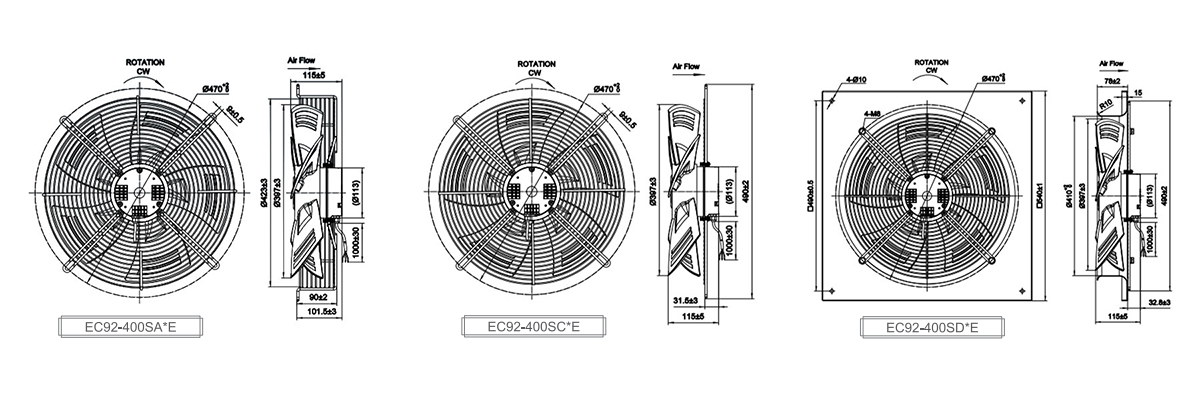

EC92-400
Working method: S1
Insulation level: Class F
Protection level: IP54
Ambient temperature: -40℃~60℃
| Model | Voltage V | Frequency Hz | Rated current A | Input power W | Speed r/min | Noise db(A) | Air volume m³/h | Curve |
| EC92-400A*E | 230 | 50/60 | 1.10 | 165 | 1450 | 67 | 3980 | ① |
| EC92-400C*E | ||||||||
| EC92-400D*E | ||||||||
| EC92-400**H | 3～380 | 50/60 | 0.35 |
