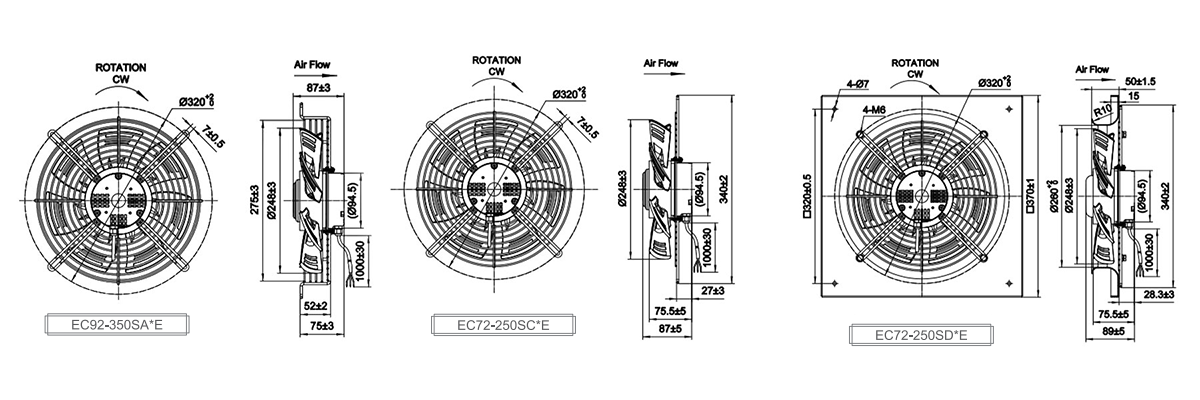

EC72-250
Working method: S1
Insulation level: Class F
Protection level: IP54
Ambient temperature: -40℃~60℃

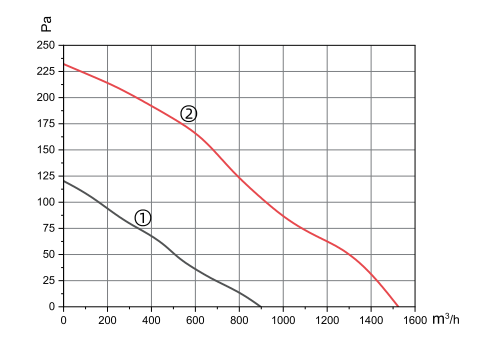

| Model | Voltage V | Frequency Hz | Rated current A | Input power W | Speed r/min | Noise db(A) | Air volume m³/h | Curve |
| EC72-250B*E | 230 | 50/60 | 0.17 | 21 | 1400 | 54 | 860 | ① |
| EC72-250C*E | ||||||||
| EC72-250D*E | ||||||||
| EC72-250B*E | 230 | 50/60 | 0.72 | 101 | 2500 | 70 | 1524 | ② |
| EC72-250C*E | ||||||||
| EC72-250D*E |
